Non-Lit SEG Fabric Media Walls

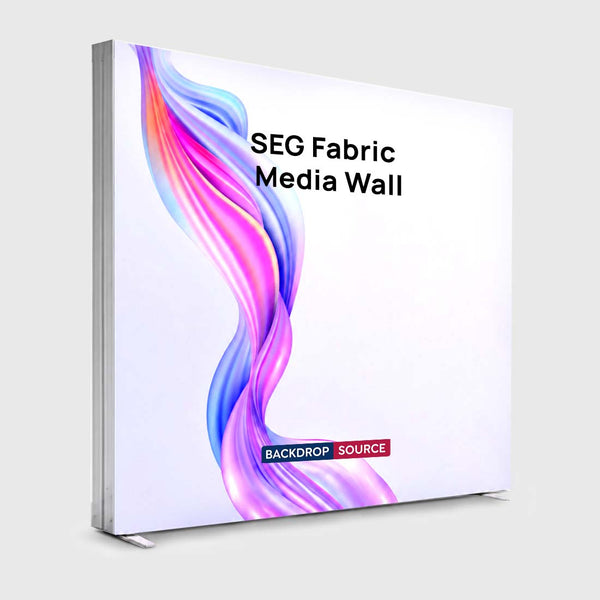

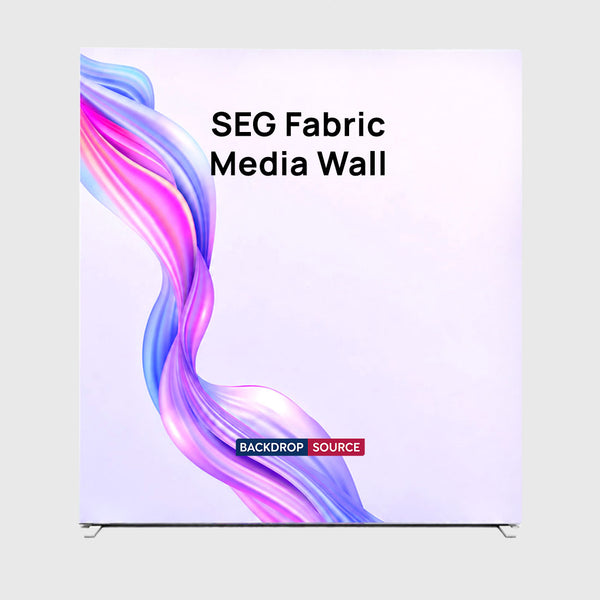

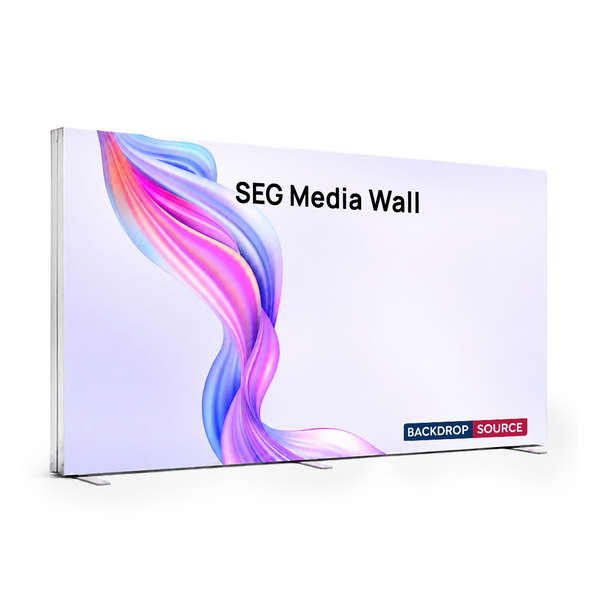

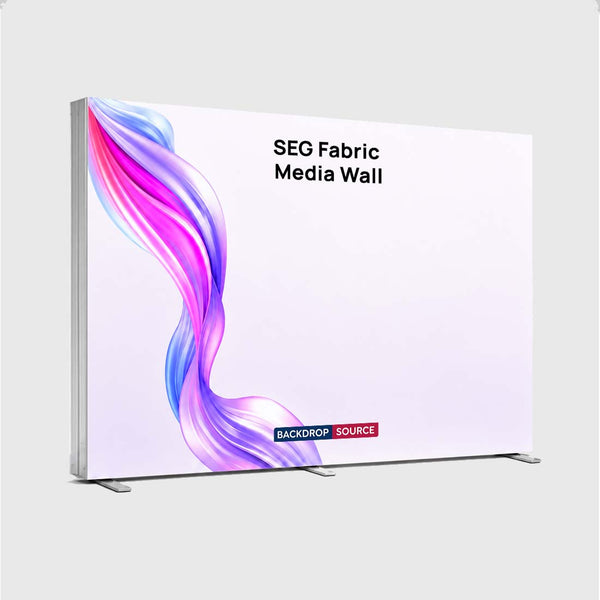

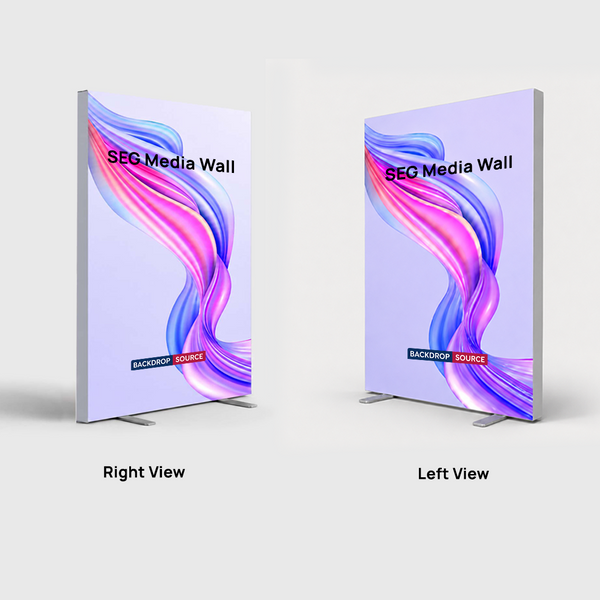

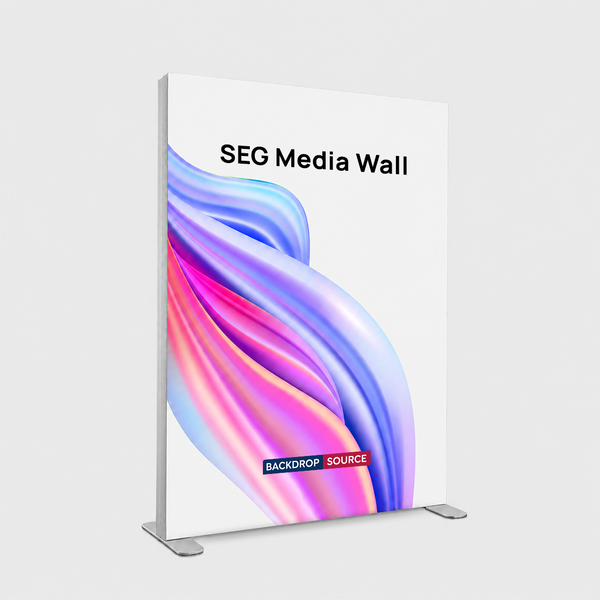

A media wall is a rigid, self-supporting backdrop built from a frame with a tensioned fabric face, used behind speakers, interviews, photocalls and product launches. A banner hangs or rolls up and moves with air, so it ripples in photographs and casts shadows across the logo. Because the SEG fabric is stretched flat and held under even tension in the groove, the surface stays true across the full width, which is what allows a camera to read the branding cleanly from an angle.

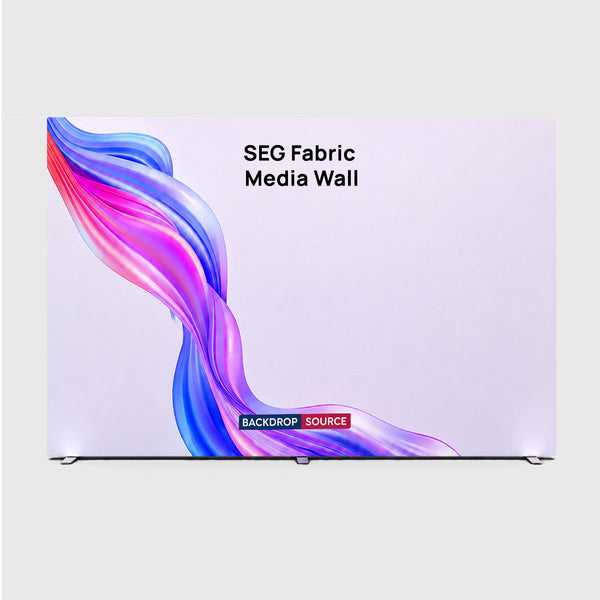

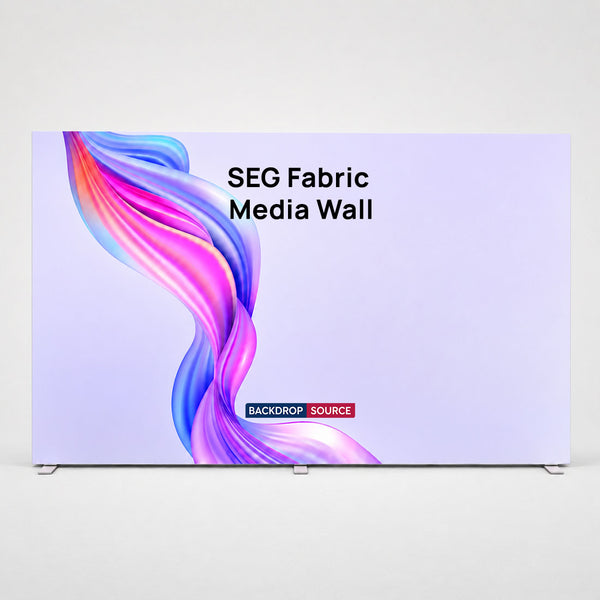

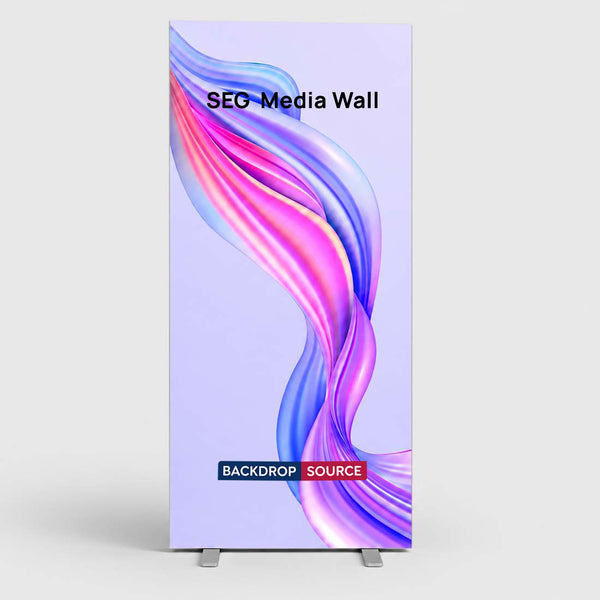

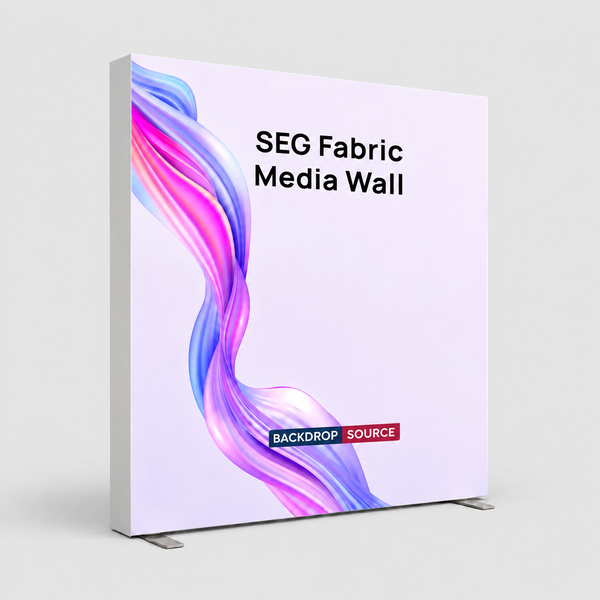

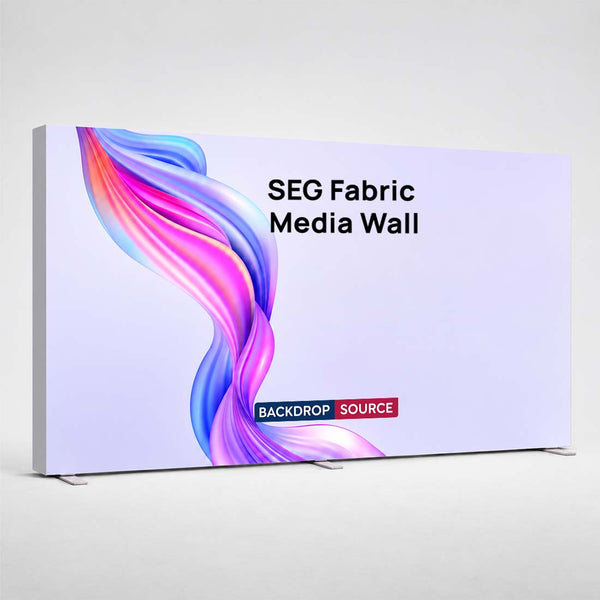

Work backwards from the shot. A single presenter reads well against a 2.5m wall, while a group of four or five people, a trophy or a vehicle bonnet usually needs 4m to 6m so nobody stands off the edge of the branding. Height matters as much as width: 2.5m keeps the logo above heads rather than behind them. Repeat the logo across the width at a regular pitch and keep the centre band clear, because that is exactly where heads and shoulders will sit.

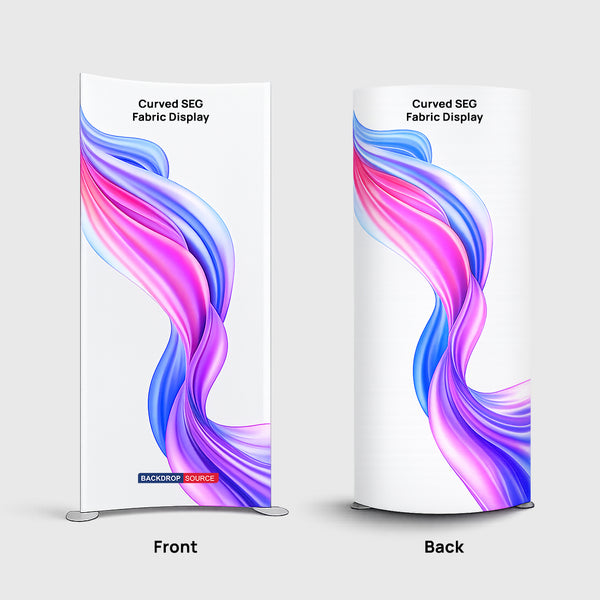

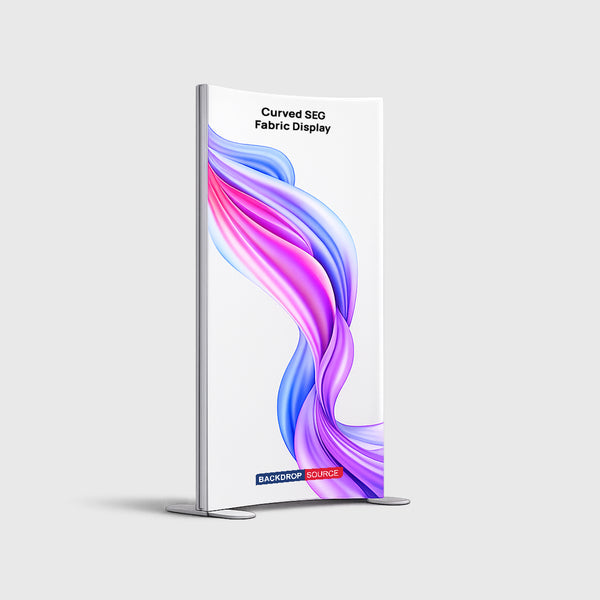

A curve wraps the viewer slightly and removes the hard vertical edges that a flat panel shows when seen from an aisle, so the wall reads as a single continuous surface from more angles. It is particularly useful on corner positions and open-sided stands where visitors approach from two directions. The trade-off is footprint: a curved frame occupies more floor depth than a flat one of the same width, so check it against your stand plan before ordering.

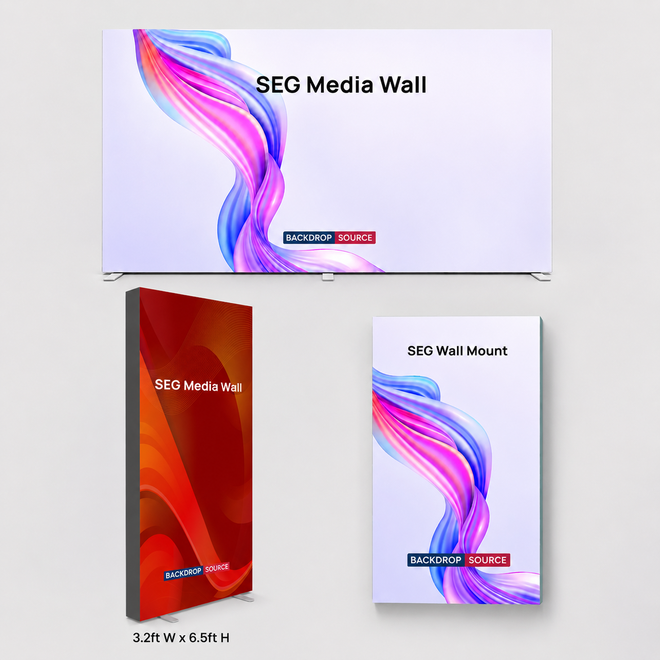

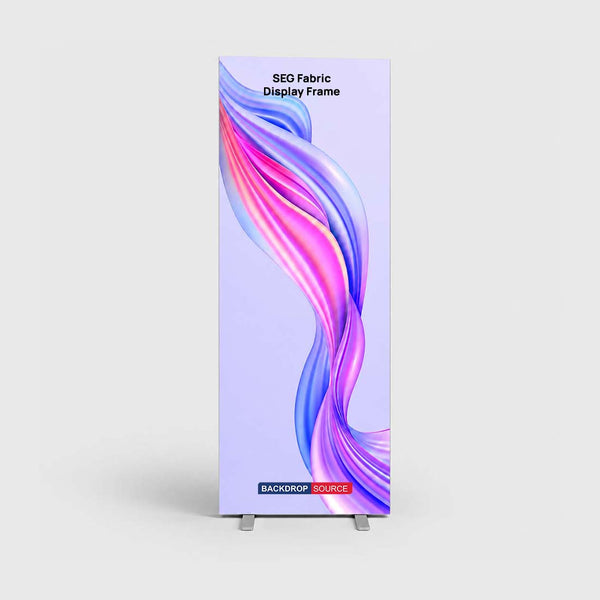

The shallow 20mm and 40mm wall-mounted frames sit almost flush and are the right answer for interiors, offices and retail where the display should read as part of the wall. The deeper 80mm, 100mm and 120mm profiles are stiffer, which matters as spans get wider, and they give a more pronounced box shadow that lifts the graphic off the surface. If you are unsure, choose depth by span first and appearance second, as a shallow profile over a wide span is the usual cause of a visibly bowed frame.

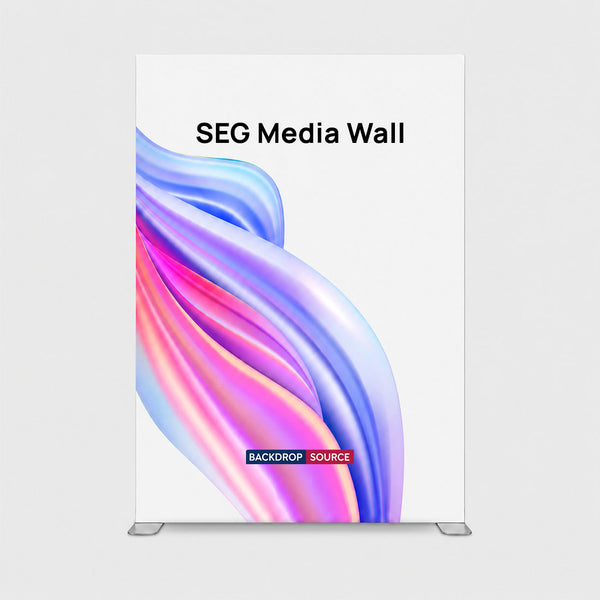

It can be, but height is the constraint that catches people out. Most shell scheme stands cap you around 2.5m, and anything taller normally needs organiser approval, a structural check and sometimes a stand plan submission, which is standard practice at halls such as Olympia London. Also confirm your ceiling clearance and the position of lighting rigs and sprinklers before ordering. The SEG Over Size Fabric Display is at its best on space-only stands and in atriums where the height is genuinely usable.

Yes, and that is the main economic argument for SEG. The aluminium frame is the durable part and is designed for repeated assembly, while the fabric skin is the consumable. Order a fresh graphic for a rebrand, a new campaign or a specific event and store the previous one flat, so a single frame can serve several years of shows. This also makes it worth investing in the correct size at the outset rather than buying a new frame each time the message changes.

Almost always the fitting sequence. Start by pushing the silicone edge into the groove at all four corners, then work along each side from the corners towards the middle, alternating between opposite sides so tension builds evenly. If you fully seat one side before starting the next, the graphic is pulled off square and you finish with a slack diagonal and rippling near the corners. Ease the edge back out and refit rather than tugging on the fabric, which stresses the sewn silicone strip.

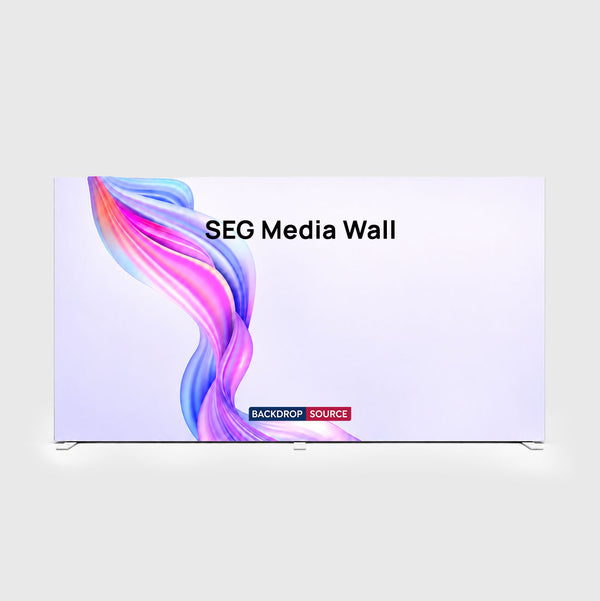

Wide walls ship as frame sections with the graphic packed separately, so no single item is the full 6m, and delivery is free within the UK. Assembly of the largest runs is a two-person job, mainly because holding a long section square while the joints are made is awkward alone rather than because of weight. Check the frame sections against the packing list on arrival, and keep the packaging, as it is the safest way to move the frame between events.
